This allowed me to use an existing arbor press that I had in the shop for heat treat. I previously used vices and clamps for heat treat and I wanted something that was easier to use and had higher performance than the raw Al I was previously using.
Features

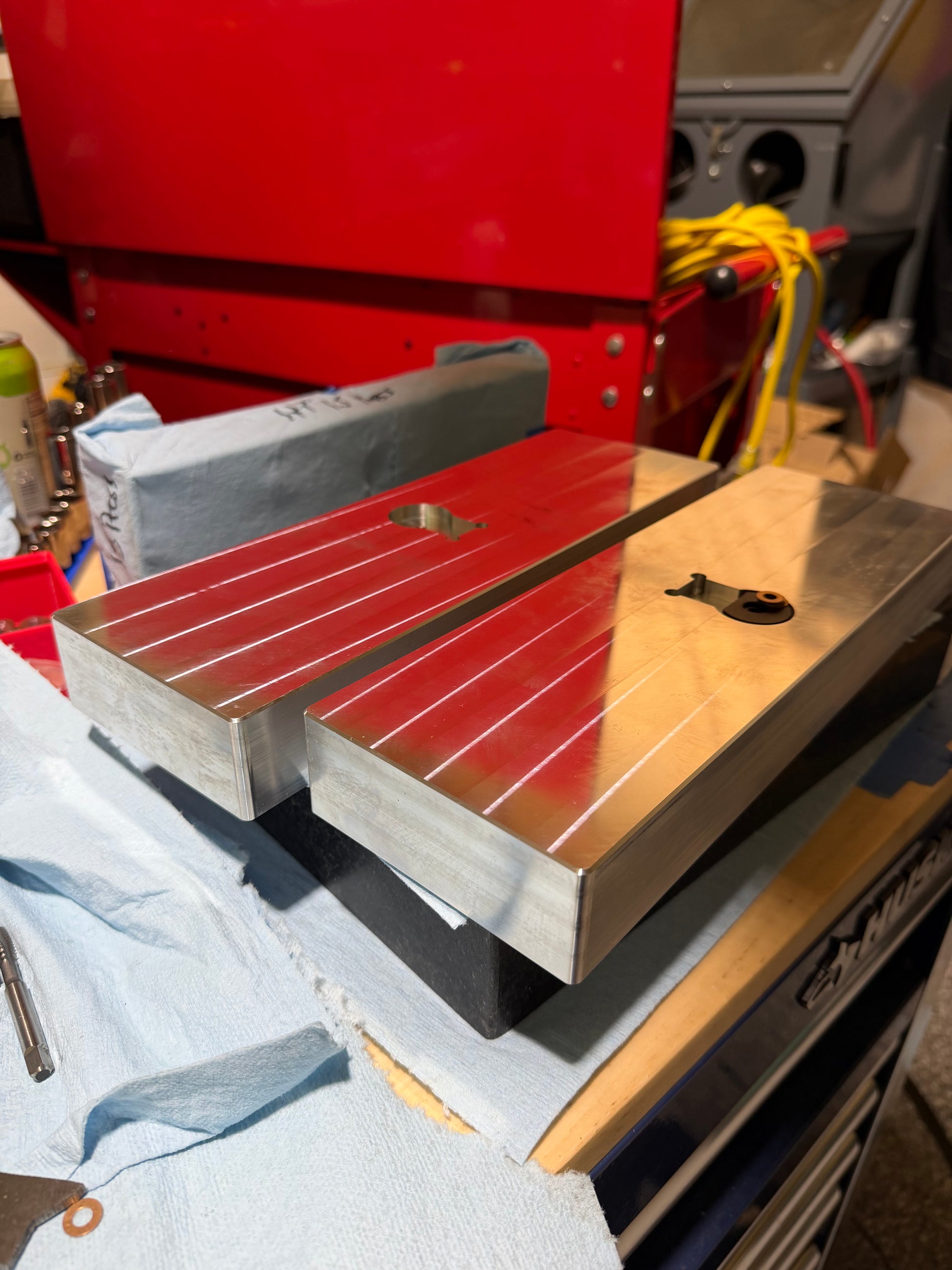

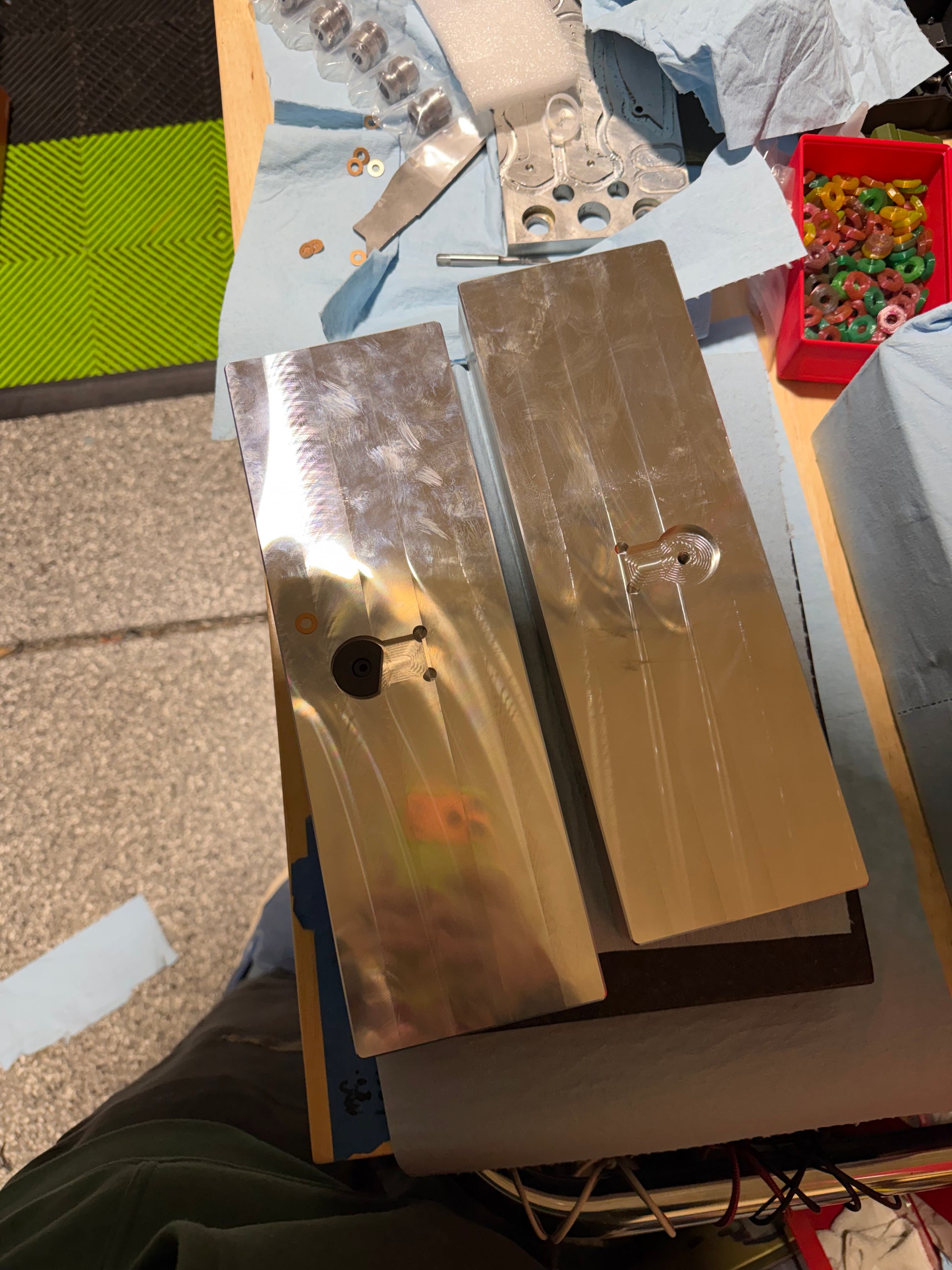

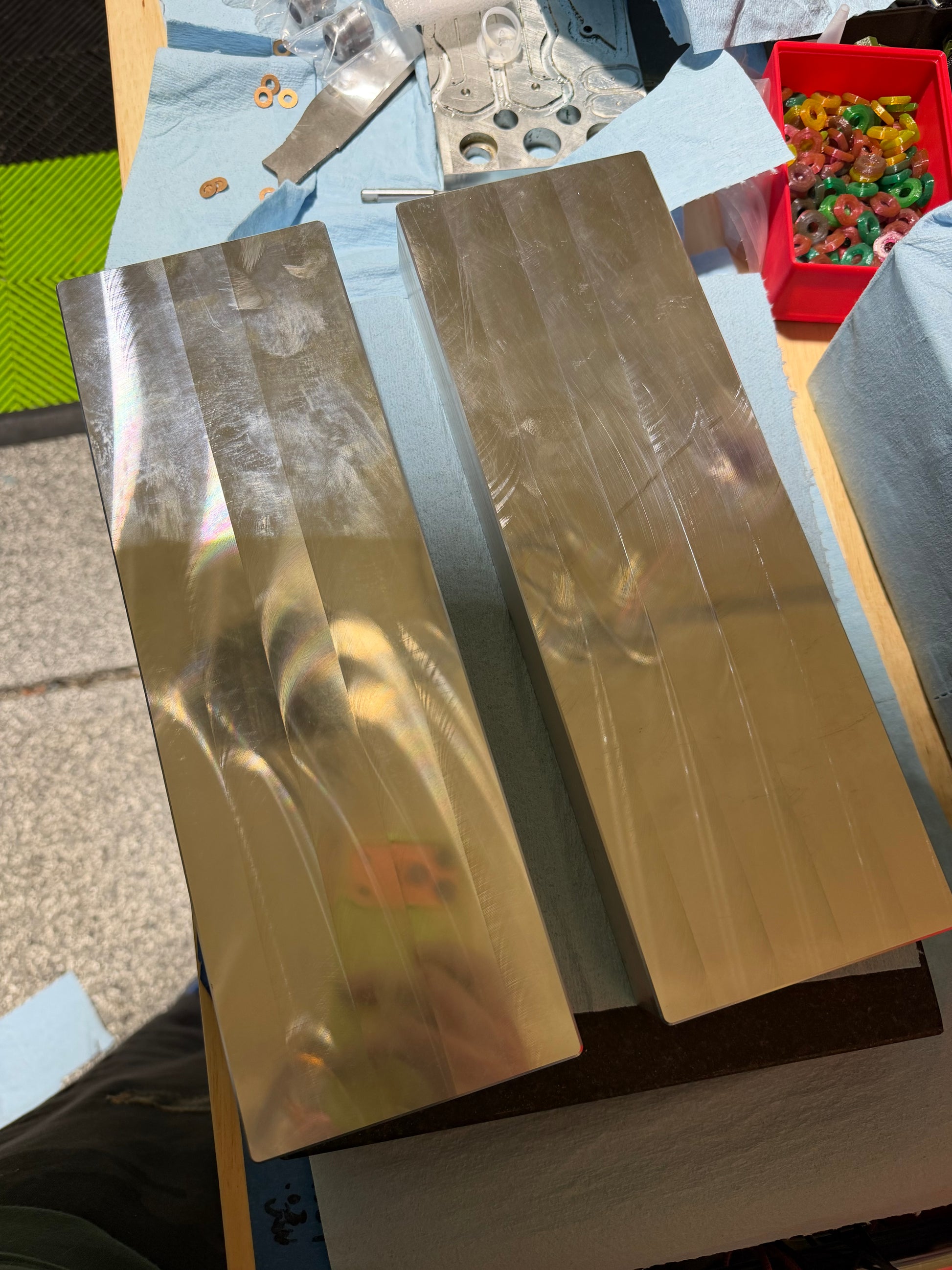

Two Precision Surface Milled Heat Treat Plates
6061 Al
Dimensions 12x4x1.48~

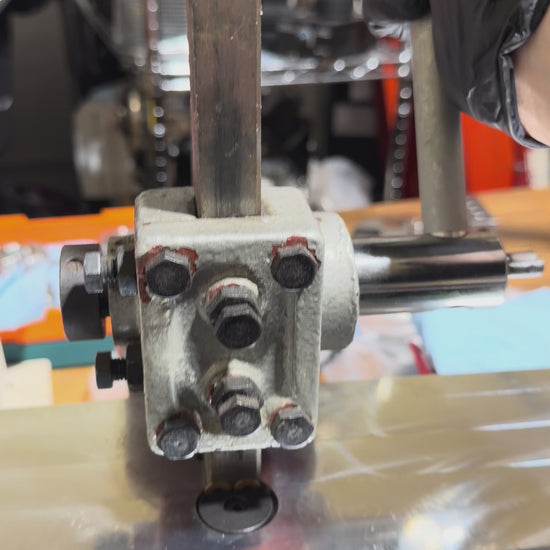

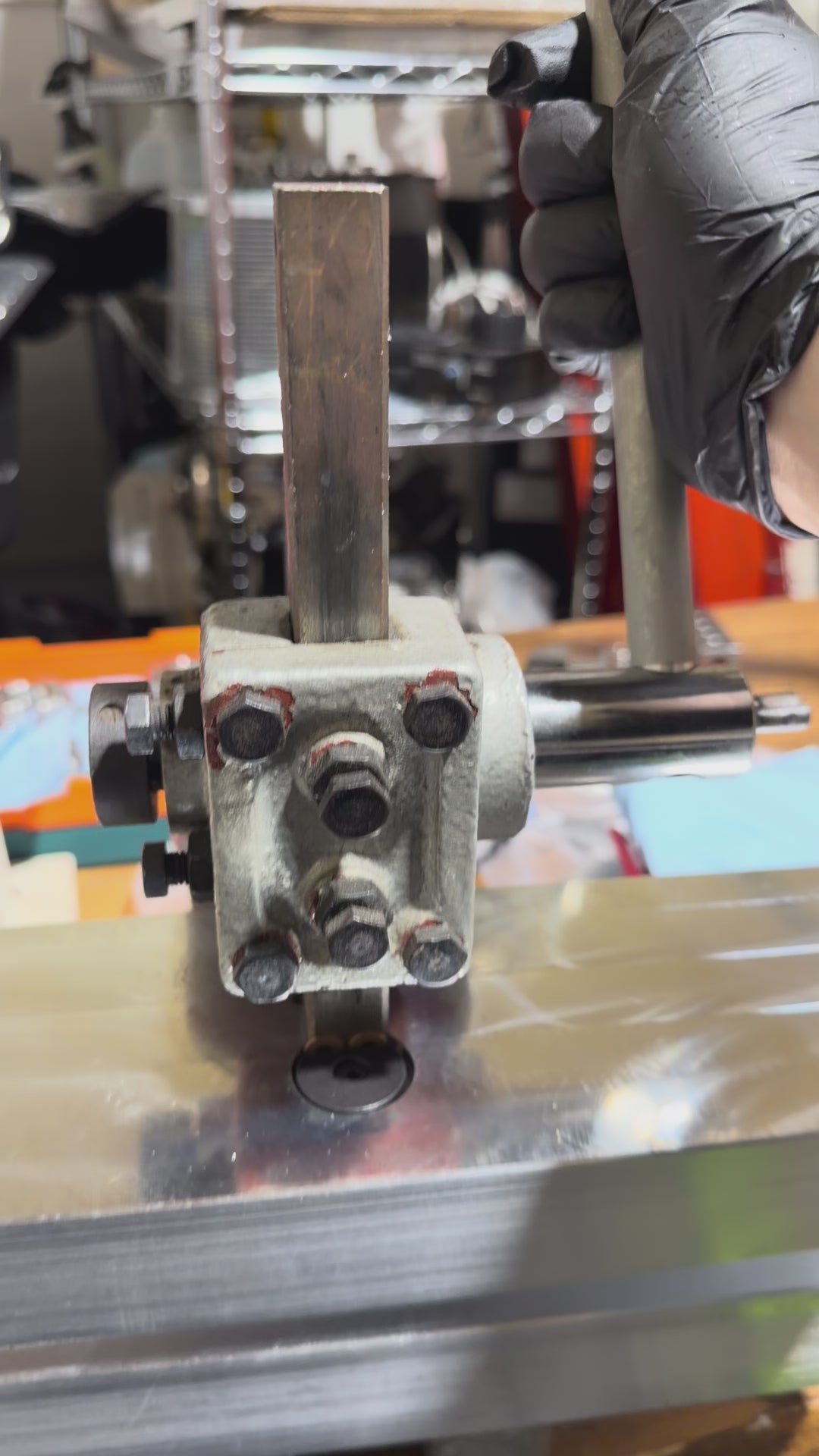

.75~ Square Arbor mount in both plates - Video shows with a small arbor with throw under 5 inches.
1x Mitee bite, Cam Screw, and Shims for fitment on a wider range of .75 arbors
Self aligning - Put the plates together, and place them in the arbor. Put pressure on the arbor and tighten the CAM bolt snug. The plates should now be aligned. This should also work with other plates as long as they are close to parallel.
